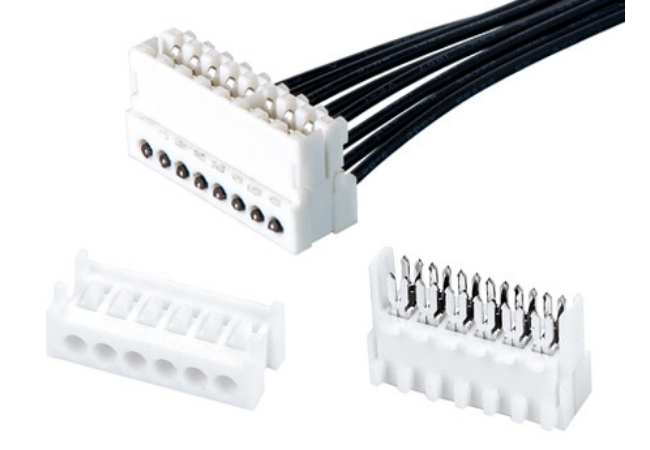

Board to Board, Board to Connector, Board to Panel Wire Harness

• Application: Designed for seamless interconnection between PCBs, connectors, and control panels — ensuring reliable signal and power transmission across electronic systems.
• Connector Types: Compatible with various pin headers, sockets, and customized terminal interfaces — supports multiple connector orientations and layouts.
• Cable Specification: Available in multiple wire gauges and insulation types — designed for stable electrical performance and flexibility in compact assemblies.
• Durability: High-quality materials and precision crimping — provide secure connections, resistance to vibration, and long operational life in industrial and electronic environments.
• Customization: Fully customizable configurations — available in different lengths, pin counts, and connector combinations to meet specific PCB and panel design requirements.

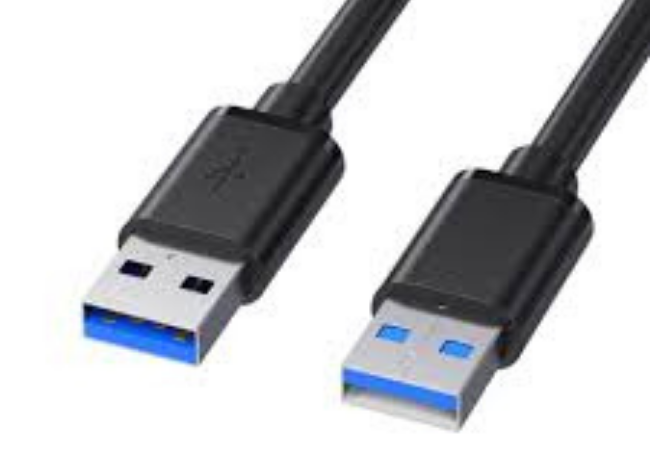

USB Cable

• High-Quality USB Cable — designed for reliable data transfer and stable power delivery across devices.
• USB Types Supported: USB-A, USB-B, USB-C, Micro-USB, and Mini-USB — compatible with computers, smartphones, peripherals, and charging devices.
• Data Transfer Speed: USB 2.0 / 3.0 / 3.1 / 3.2 — ensures fast and efficient data communication up to 10Gbps.
• Cable Construction: Premium copper conductors with shielding — minimizes interference and maintains signal integrity.
• Available Lengths: 0.3m, 0.5m, 1m, 2m, 3m — flexible options for desktop, travel, or extended usage.

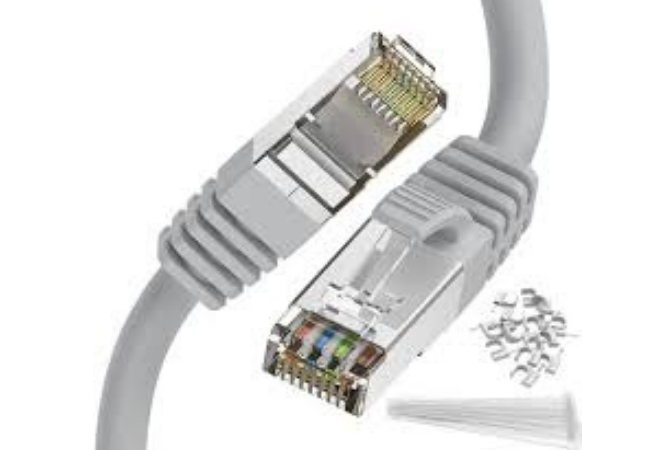

LAN Cable (Ethernet)

• High-Quality LAN Cable — designed for fast, stable, and reliable network connectivity for home, office, and industrial use.
• Cable Types: Cat5, Cat5e, Cat6, Cat6a, Cat7, Cat8 — suitable for different speed and bandwidth requirements.
• Data Transmission Speed: 100Mbps to 40Gbps depending on cable category — ensures high-speed network performance.
• Cable Construction: Twisted pair with foil or braided shielding — minimizes crosstalk and electromagnetic interference (EMI).
• Connector Types: RJ45 standard connectors — supports plug-and-play installation for routers, switches, computers, and other Ethernet-enabled devices.

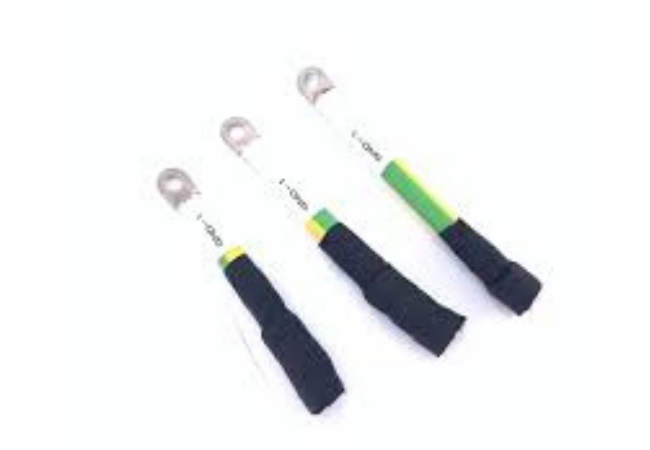

K.S RNBS5-5 (5.3mm Circular End) Tin (150mm)

• Circular End Size: 5.3mm — designed for secure and stable electrical connections.
• Material: Tin-plated — provides corrosion resistance and enhanced conductivity.
• Cable Length: 150mm — suitable for compact wiring and easy integration into assemblies.
• Applications: Ideal for automotive, industrial, and electronic wiring harnesses where reliable connections are required.
• Standards: Manufactured to ensure durability, stable electrical performance, and long operational life.

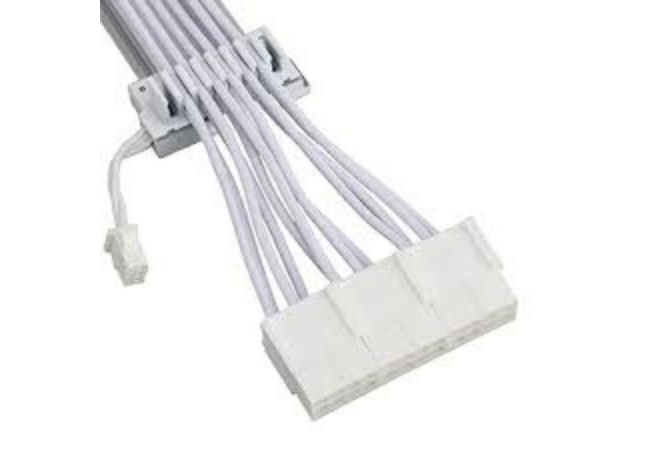

Wire-to-Board Connector Wire Harness (400mm)

• Length: 400mm — suitable for flexible installation in compact electronic assemblies.
• Connector Type: Wire-to-Board — compatible with standard PCB headers and sockets.
• Wire Specification: High-quality copper conductors with durable insulation — ensures stable signal and power transmission.
• Applications: Ideal for interconnecting PCBs, sensors, modules, and electronic devices in automotive, industrial, and consumer electronics.
• Customization: Available in multiple wire gauges, colors, and connector options to meet OEM and project-specific requirements.

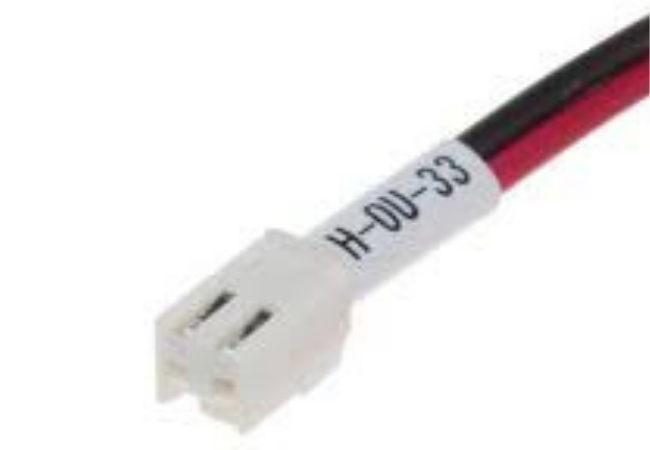

JST SHR-02V-S-B White (150mm)

• Length: 150mm — ideal for compact and precise wiring applications.
• Connector Type: JST SHR-02V-S-B — reliable 2-pin wire-to-board connection.
• Color: White — standard color coding for easy identification.
• Wire Specification: High-quality conductors with durable insulation — ensures stable power and signal transmission.
• Applications: Suitable for automotive, industrial, and electronic device assemblies requiring compact wire-to-board connections.

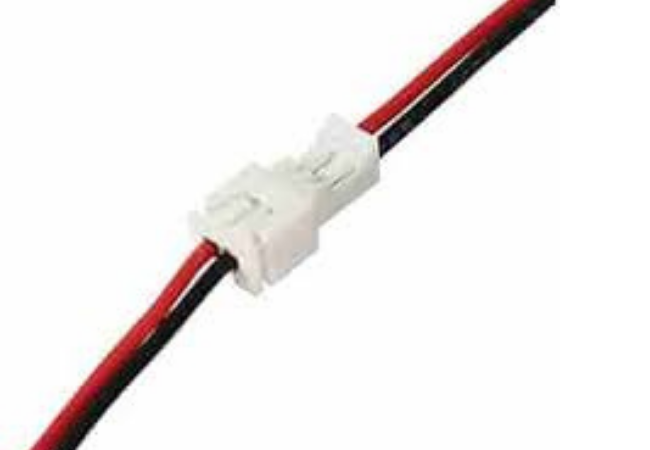

JST SHR-02V-S-B White (150mm)

• Length: 150mm — ideal for compact and precise wiring applications.
• Connector Type: JST SHR-02V-S-B — reliable 2-pin wire-to-board connection.
• Color: White — standard color coding for easy identification.
• Wire Specification: High-quality conductors with durable insulation — ensures stable power and signal transmission.
• Applications: Suitable for automotive, industrial, and electronic device assemblies requiring compact wire-to-board connections.

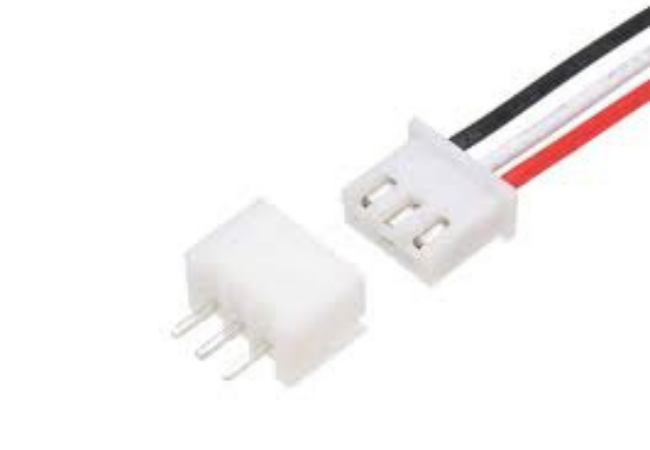

JST PHR-3 White Connector

Overview

The JST PHR-3 White connector is a compact, lightweight wire-to-board solution designed for reliable connections in space-constrained applications. With a 2.5mm pitch and built-in locking mechanism, it ensures secure attachment and stability, making it ideal for small electronic devices such as cameras, mobile gadgets, and portable music players.

Key Features

• 2.5mm pitch for precise wire-to-board connections
• Locking mechanism for secure installation
• Compact and lightweight design
• RoHS compliant and cost-effective
• 2-position configuration (expandable for more pins)

Applications

• Robotics and automation systems
• Medical devices and equipment
• Security and lighting systems
• Consumer electronics and portable devices
• Automotive and industrial control systems

Specifications

• Rated current: 3A
• Rated voltage: 100V
• Operating temperature: -25°C to +85°C
• Insulation resistance: 1000MΩ
• Material: Nylon 66, UL94V-0

Wire Details

• UL1007 #24, 11/0.16, OD: 1.41±0.08mm
• Rated temperature: 80°C, Rated voltage: 300V
• Flame-retardant: UL VW-1 and CSA FT1 certified
• Construction: PVC insulated over copper or tin-plated conductor

Quality Standards

Manufactured and tested according to UL758, ensuring durability, pressure resistance, and performance over time under varying temperature and environmental conditions.

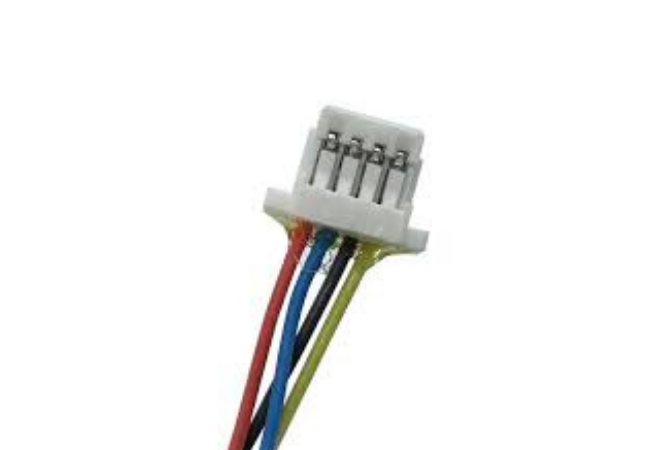

JST PAP-04V-S White Connector (150mm)

Introduction

The JST PAP-04V-S white connector housing is part of the PA connector series, designed for wire-to-board connections on printed circuit boards. These housings provide high-quality, secure sockets suitable for household appliances, industrial control systems, and storage/network equipment.

Features & Advantages

• 2.0mm pitch for precise wire-to-board connections
• Additional locking mechanism for secure connections
• Compact and durable design
• Thumb-press mechanism prevents accidental disconnection due to vibration
• Suitable for vibration-resistant and high-reliability applications

Wire Specification

• UL1007 #24, 11/0.16, OD: 1.41±0.08mm
• Rated Temperature: 80°C, Rated Voltage: 300V
• Wire construction: PVC insulation layer over copper or tin-plated copper conductor
• Flame-retardant: UL VW-1 and CSA FT1 compliant
• Standard: Produced and tested according to UL758 (temperature, pressure, aging, and other tests)
